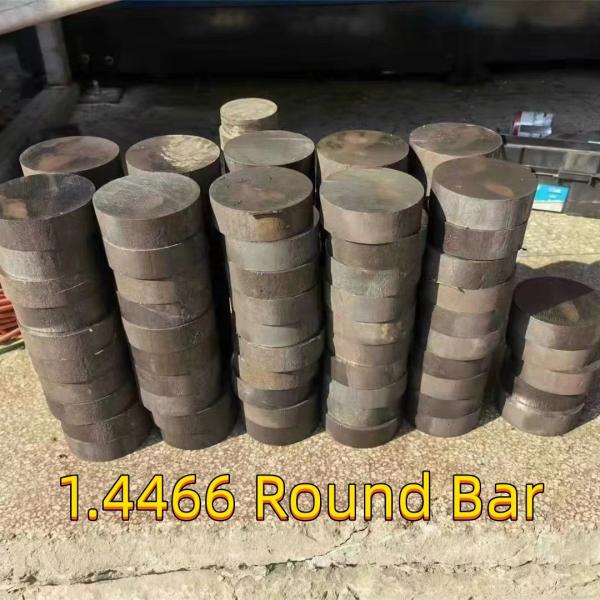

DIN 1.4466 Stainless Steel Round Bar AISI 310MOLN S31050 X1CrNiMoN25-22-2 60mm

Product Categories
JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DIN 1.4466 Stainless Steel Round Bar AISI 310MOLN S31050 X1CrNiMoN25-22-2 60mm

  • 1
  • 2
  • 3

Brand Name : MITTEL TISCO BAO STEEL

Model Number : 1.4466

Certification : ISO,BV,SGS

Place of Origin : China

MOQ : 100KGS

Price : 6.5 USD/KG

Payment Terms : L/C, T/T

Supply Ability : 50000KGS

Delivery Time : 7 Days

Packaging Details : Wooden Box

Type : Round

Application : Construction,decoration,Industry,Mechineal,shipbuilding

Standard : DIN,ASTM,AISI,JIS

Grade : 300 Series

Shape : Round

Dimensions : 5.5mm-500mm

Surface : bright

Technique : Cold drawn&hot rolled

Packing : Standard Seaworthy Package

Price term : CIF CFR FOB Ex-Work

Contact Now

AISI 310MOLN S31050 X1CrNiMoN25-22-2 DIN 1.4466 Stainless Steel Round Bar

Product Name 310MoLN DIN 1.4466 Stainless steel UNS S31050 Round Bar
Material Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
Shape Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet
Grade Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc
Alloy : Alloy 20/28/31;
Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;

Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 /

DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 /

UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
Haynes: Haynes 230/556/188;
Inconel Series:
Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20;
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851,
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
Incoloy: Incoloy 800/800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500/R405
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90/A263 ;
Specification Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Product
Characteristics		 1.According to the preparation process can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys.
2.According to the strengthening mode, there are solid solution strengthening type, precipitation
strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc..
Standard GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Inspection ISO,SGS,BV and so on.
Application High temperature components such as turbine blades, guide vanes, turbine disks, high pressure
compressor disks,machine manufacturing
and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines
Packaging 1. cases packed in wooden cases
2. paper packaging
3. plastic packing
4. foam packaging
Packaging according to customer requirements or products
Delivery 7-25days or according to the product
Payment L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments
for offline orders.

TECHNICAL SPECIFICATION DATASHEET - BS X1CrNiMoN25-22-2 / 1.4466
MATERIAL CATEGORY: Stainless steel round bar, wire rod, and semi-finished products
STEEL TYPE: Austenitic series
MATERIAL SPECIFICATIONS: BS EN 10083-3 (2005)
CHEMICAL COMPOSITION (mass weight %)
Carbon, C (％): ≤ 0.020
Silicon, Si (％): ≤ 0.70
Manganese, Mn (％): ≤ 2.00
Phosphours, P (％)≤: 0.025
Sulfur, S (％)≤: 0.010
Chromium, Cr (％): 24.0 ~ 26.0
Nickel, Ni (％): 21.0 ~ 23.0
Molybdenum, Mo (％): 2.00 ~ 2.50
Nitrogen, N (％): 0.10 ~ 0.16
MECHANICAL PROPERTIES / INTERGRANULAR CORROSION RESISTANT TENDENCY
Thickness Diameter (d)/≤mm: 160
Hardness HBS: 240
Yield strength σ0.2≥/MPa: 250
Tensile strength σb/MPa: 540～740
Elongation δ(longitudinal )≥(％): 35
Elongation δ(transversal )≥(％): -
Impact absorbing energy Akv≥/J|longitudinal: 100
Impact absorbing energy Akv≥/J|transversal: -
Intergranular corrosion resistance tendency | condition of delivery: Yes
Intergranular corrosion resistance tendency | condition of welding: Yes
Thickness Diameter (d)/≤mm: 160 < d ≤ 250
Hardness HBS: 240
Yield strength σ0.2≥/MPa: 250
Tensile strength σb/MPa: 540～740
Elongation δ(longitudinal )≥(％): -
Elongation δ(transversal )≥(％): 30
Impact absorbing energy Akv≥/J|longitudinal: -
Impact absorbing energy Akv≥/J|transversal: 60
Intergranular corrosion resistance tendency | condition of delivery: Yes
Intergranular corrosion resistance tendency | condition of welding: Yes
What is the material standard for delivery?
Our executive standard is ASTMA240.
How to comfirm the sizes of products?
Measurements can be made . After production, we will measure the size, mark the tolerances and confirm with the customer



Could you send me a quotation?
Sure! Before that ,please kindly send us the following:size,quantity,surface,grade,the more detailed ,the better can we further our business.
How to confirm material?
We have a PMI tester imported from Germany, which is used for testing material, confirming ingredients and proportion



How to guarantee delivery time?

The contract will indicate the time of delivery:7-15 working days in general.
What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. LC at sight is also alternative.
