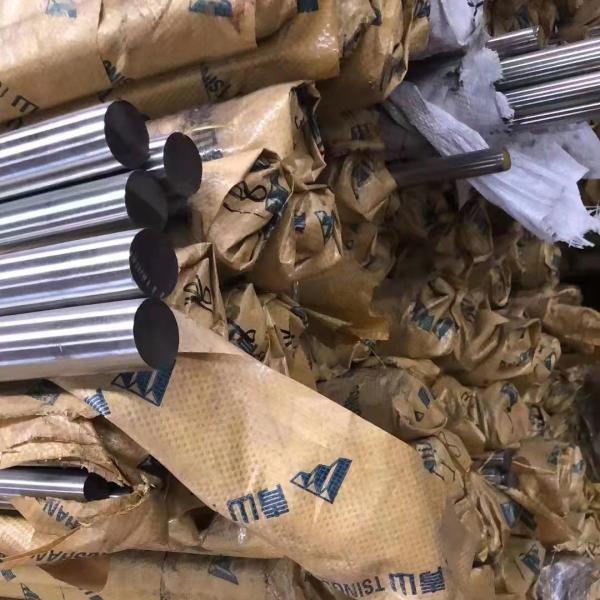

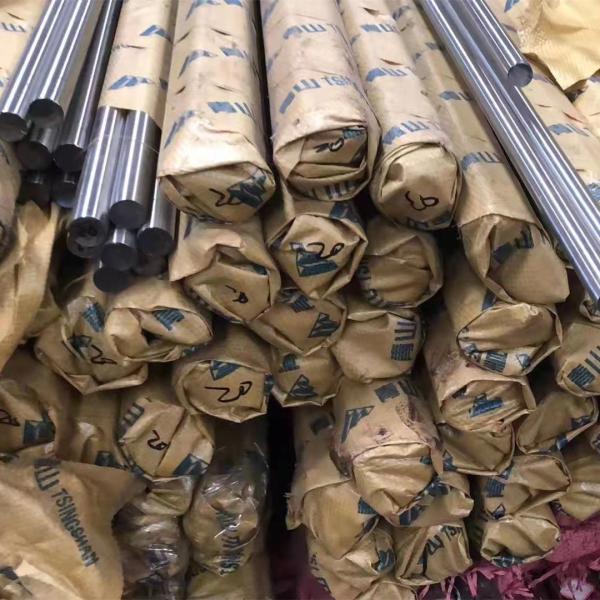

Astm A276 Stainless Steel Round Bar Tp316l Ss316l Bright

Name: Astm A276 Stainless Steel Round Bar Tp316l Ss316l Bright
Brand: Bao Steel
Price: 4 USD

Wholesale Astm A276 Stainless Steel Round Bar Tp316l Ss316l Bright from china suppliers

Brand Name : Bao Steel

Model Number : 316L

Certification : SGS ISO

Place of Origin : China

MOQ : 500KGS

Price : 4 USD/KG

Payment Terms : L/C, T/T

Supply Ability : 50000 KGS

Delivery Time : 7 Days

Packaging Details : Export Packing

OD : 10-450mm

Surface : Bright and Black

Type : Hot Rolled

Length : 1-12m

Grade : 316L

Contact Now

Description
Item	Stainless steel round bar
Steel grade	200/300/400 series
Standard	ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296
Material	304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, 202
Surface	Polishing,annealing,pickling,bright
Type	hot rolled and cold rolled
Delivery time	Prompt delivery or as the order quantity.
Package	Standard export seaworthy package,or as required.
Application	Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required.

“316/316L Stainless Steel Round Bars Stock Available for Immediate Deliveries Worldwide!”

Stainless Steel 316/316L Round Bars

Prices for Stainless Steel 316/316L Round Bars Starting at Rs. 195/kg

Metline is one of the world most reliable supplier of stainless steel round bars with shortest delivery times. It can be supplied in a range of sizes and finishes with varying tolerances. Cold-finished stainless steel bar is usually supplied to meet the international standards of ASTM A276, A484 or A582/A484M.

Manufacturing Specifications for 316/316L Stainless Steel Round Bars, 316 Stainless Steel Rods

Designation of Stainless Steel 316/316L Grade Round Bars

Stainless Steel [SS] 316 / 316H / 316 L / 316N / 316Ti
AISI	316 / 316H / 316 L / 316N / 316Ti
UNS	S31600 / S31609 / S31603 / S31651 / S31635
Werkstoff Nr.	1.4401 / 1.4404 / 1.4432 / 1.4435 / 1.4429 / 1.4571

Chemical Composition of Stainless Steel 316/316L Round Bars/Rods

SS	316	316H	316N	316L	316Ti
Ni	10 – 14	10 – 14	10 – 14	10 – 14	10 – 14
Fe	Balance
Cr	16 – 18	16 – 18	16 – 18	16 – 18	16 – 18
Mo	2 – 3	2 – 3	2 – 3	2 – 3	2 – 3
C	0.08 max	0.10 max	0.03 max	0.03 max	0.08 max
Si	0.75 max	0.75 max	0.75 max	0.75 max	0.75 max
Mn	2 max	2 max	2 max	2 max	2 max
P	0.045 max	0.045 max	0.045 max	0.045 max	0.045 max
S	0.030 max	0.030 max	0.030 max	0.030 max	0.030 max
N	0.1 max		0.1 max	0.1 max	0.1 max
Ti					5 X % (C + N)

Mechanical and Physical Properties of Stainless Steel 316/316L Round Bars

Density	8.0 g/cm3
Melting Point	1400 °C (2550 °F)
Tensile Strength	Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset)	Psi – 30000 , MPa – 205
Elongation	35 %

Production and Supply Range for Stainless Steel 316/316L Round Bars – Buy Now!

Standard	316/316L, 1.4401, 1.4404
Designation	ASTM A276, A479, ASME SA276, 479
Range	3 MM TO 350 MM DIA
Finish	Bright, Polish & Black
Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.

Stainless Steel 316/316L Bright Round Bars Manufacturers, Suppliers Size Range

Metline Industries is a leading supplier of cold drawn machined bright bars with highest level of dimensional accuracy, right mechanical properties, and excellent machining capabilities.

Type	SIZES (mm)	SIZES (Inches)	ISO Tolerance
Cold Drawn and Polish	3.00 – 75.00	1/8” – 3.00”	h8-h9-h10-h11, ASTMA-484
Cold Drawn and Ground	10.00 – 75.00	5/6” – 2.50”	h8-h9-h10-h11
Peeled and Polished	40.00 – 150.00	1.50” – 6.00”	h11, ASTMA-484 h11-DIN 1013
Peeled and Ground	20.00 – 50.00	3/4″ – 2.00”	h9-h10-h11, ASTMA-484

Specifications for Stainless Steel 316/316L Cold Drawn Round Bars

We can give Chamfering of 30 or 45 degrees on one or both the ends. For Strain-Hardened Bars, we can supply in B8(304) and B8M(316) in Class1 and Class2.

Condition	Cold Drawn & Polished	Cold Drawn, Centreless Ground & Polished	Cold Drawn, Centreless Ground & Polished (Strain Hardened)
Grades	201, 202, 303, 304, 304L, 310, 316, 316L, 321, 410, 420, 416, 430, 431, 430F & others		304, 304L, 316, 316L
Diameter (Size)	2 mm to 5mm (1/8″ to 3/16″)	6mm to 22m (1/4″ to 7/8″)	10mm to 40mm (3/8″ to 1-1/2″)
Diameter Tolerance	h9 (Din 671),h11 ASTM A 484	h9 (Din 671) ASTM A 484	h9 (Din 671),h11 ASTM A 484
Length	3/4/5.6/6 meter (12/14ft/20feet)	3/4/5.6/6 meter (12/14ft/20feet)	3/4/5.6/6 meter (12/14ft/20feet)
Length Tolerance	-0/+200mm or +100mm or +50mm (-0 ”/+1 feet or +4 ” or 2 ”)	-0/+200mm or +100mm or +50mm (-0 ”/+1 feet or +4 ” or 2 ”)	-0/+200mm (-0 ”/+1 feet)

Specifications for Peeled Turned Polished Stainless Steel 316/316L Round Bars, Forged Bars

We can manufacture and offer stainless steel hot rolled round bars and rods in “As rolled condition” or “Heat treated condition”. All products supplied by Metline Industries have passed IGC Practice E test, as well as UT Test.

Condition	Peeled, Centre less Ground & Polished	Peeled & Polished	Peeled (Rough Turned)	Forged, Rough Turned
Grades	201, 202, 303, 304, 304L, 310, 316, 316L, 321, 410, 420, 416, 430, 431, 430F & others		304, 304L, 316, 316L, 410, 416, 420, 431	303, 304, 304L, 316, 316L, 410, 416, 420, 431
Diameter (Size)	20mm to 85mm (3/4 ” to 3–1/4 ”)	85mm to 140mm (3-1/4 ” to 4–3/4 ”)	25mm to 140mm (1 ” to 5–1/2 ”)	150mm to 400mm (6 ” to 16”)
Diameter Tolerance	h9 (Din 671) ASTM A 484	h11	K12/K13 (Din 1013)	-0mm/+3mm (-0 ”/+0.12 ”)
Length	3/4/5.6/6 meter (12/14ft/20feet)	3/4/5.6/6 meter (12/14ft/20feet)	3/4/5.6/6 meter (12/14ft/20feet)	3 meter -5 meter 10 feet -16 feet
Length Tolerance	-0/+200mm or +100mm or +50mm (-0 ”/+1 feet or +4 ” or 2 ”)	-0/+200mm or +100mm or +50mm (-0 ”/+1 feet or +4 ” or 2 ”)	-0/+1000mm or 500mm (-0 ”/+3 feet or +2 feet)	-0/+2 meter- -0/+6 feet

Astm A276 Stainless Steel Round Bar Tp316l Ss316l Bright
