ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler

Product Categories

JIANGSU MITTEL STEEL INDUSTRIAL LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler

Name: ASME SA516 Grade 70 Carbon Steel Plate Hot Rolled Steel Plate For Boiler
Brand: Bao Steel
Price: 0.75 USD

Wholesale ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler from china suppliers

Brand Name : Bao Steel

Model Number : Asme Sa516 Grade 70

Certification : SGS ISO MTC BV

Place of Origin : China

MOQ : 100KGS

Price : 0.75 USD/KG

Payment Terms : L/C, T/T

Supply Ability : 80000KGS

Delivery Time : 7 Working Days

Packaging Details : Wooden Box Wooden Pallet

Width : 600-2500mm

Grade : Asme Sa516 Grade 70

Application : Boiler Plate

Technique : Hot Rolled

Type : Steel Plate

Standard : ASTM

Length : 1000-12000mm

Special use : Pressure Vessel Boiler

Thickness : 6-400mm

Product name : Boiler Quality Pressure Vessel Steel Plate

Shape : Flat Steel Plate

Coil weight : 3-8 Tons

Contact Now

ASTM A516 Grade 70 / ASME SA516 Grade 70 - Specifications and Standards

The specifications and standards of ASTM A516 Grade 70 and ASME SA516 Grade 70 carbon steel plate are outlined in table 1.

Table 1. Equivalent Specifications and Standards of ASTM A516 Grade 70 / ASME SA516 Grade 70

Standard	Description
ASTM/ASME	A/SA516 - Grade 70
DIN Standard	-
British Standard	BS1501-224-490A/B
European Norm	EN10028 P355GH

ASTM A516 Grade 70 / ASME SA516 Grade 70 - Chemical Composition

The chemical composition of ASTM A516 Grade 70 and ASME SA516 Grade 70 carbon steel plate are listed in table 2.

Table 2. Typical Chemical Composition of ASTM A516 Grade 70 / ASME SA516 Grade 70

Composition	Percentage %	Composition	Percentage %
C	0.10/ 0.22	Cu	0.3
Si	0.6	Ni	0.3
Mn	1/ 1.7	Mo	0.08
P	0.03	Nb	0.01
S	0.03	Ti	0.03
Al	0.02	V	0.02
Cr	0.3

ASTM A516 Grade 70 / ASME SA516 Grade 70 - Mechanical Properties

The mechanical properties of ASTM A516 Grade 70 and ASME SA516 Grade 70 carbon steel plate are outlined in table 3.

Table 3. Typical Mechanical Values of ASTM A516 Grade 70 / ASME SA516 Grade 70

Properties	Value
Tensile Strength (N/mm²)	510/ 650
Yield stress/ min (N/mm²)	335

ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler

Product Tags:

low carbon steel plate

high carbon steel plate

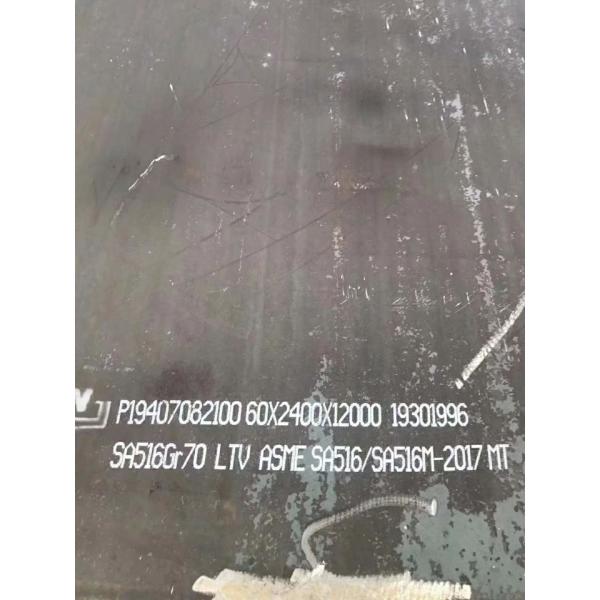

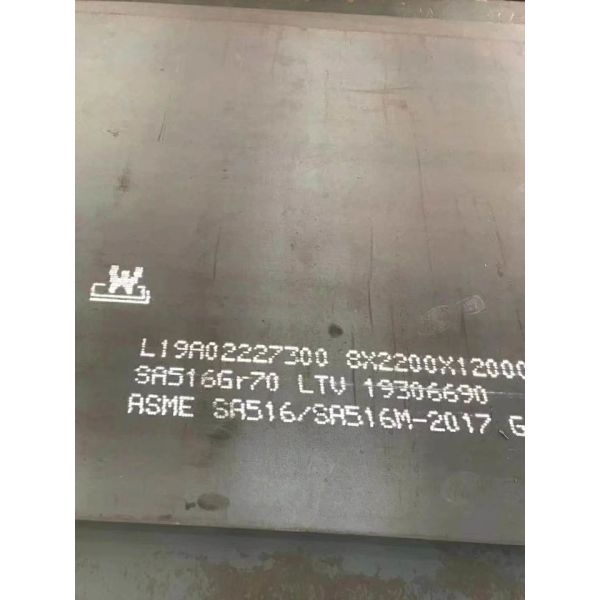

ASME SA516 Grade 70 Carbon Steel Plate , Hot Rolled Steel Plate For Boiler Images
