Brand Name : TISCO
Model Number : 443
Certification : SGS ISO
Place of Origin : China
MOQ : 1 Tons
Price : 2138 USD/Ton
Supply Ability : 500 Tons
Delivery Time : 7 Days
Packaging Details : Export Packing
Thickness : 0.5-10mm
Width : 1000-2500mm
Length : 2000-6000mm
Surface : 2B 2D NO.4
Type : Hot Rolled
Another common stainless steel is 443. It is a Ferrritic alloy that consists of Chromium and Titanium, while extremely low in Carbon. Together, these elements give 443 stainless a strong resistance to corrosion, especially against moisture and salt. Although most Ferritic alloys cannot compete with Austenitic alloys in terms of durability, the high level of Chromium in 443 makes it at least as corrosion-resistant as 304. Also, when compared to 304, 443 expands even less with heat, which means less stress and less warping. Remember, since 443 has high levels of Chromium, it is magnetic. This does NOT mean, however, that it is a low quality stainless! Even with a magnet on it, Chromium is one of the most corrosion-resistant metals around!
● Available Specification
Item | Standard | Finish | Thick. (mm) | Width (mm), Master Coil Sizes | Remark | |||||
1000 | 1219 | 1250 | 1500 | 1800 | 2000 | |||||
443 Stainless Steel Coil | ASTM JIS GB | No.1 (1D) | 3.0~8.0 | | ※ | ※ | | | | 1.Cut length upto 12 meters |
2B, 2D | 0.4~3.0 | ※ | ※ | ※ | | | |
● Features
1. Magnetic, ferritic stainless steel without Ni and Mo, but with high Cr.
2. High inter-granular corrosion resistance, excellent formability and weldability.
3. Excellent pitting and crevice corrosion resistance, with good thermal stability.
● Applications
● Chemical Composition
GRADE | 400 SERIES, MAX, % | |||||||||
C | Mn | P | S | Si | Cr | Ni | Mo | N | Others | |
405 | 0.08 | 1.0 | 0.04 | 0.03 | 1.0 | 11.5-14.5 | 0.6 | - | - | Al 0.10-0.30 |
409L | 0.03 | 1.0 | 0.04 | 0.02 | 1.0 | 10.5-11.7 | 0.5 | - | 0.03 | Ti 63(C+N) min, 0.50 max; Cb 0.17 |
410 | 0.08-0.15 | 1.0 | 0.04 | 0.03 | 1.0 | 11.5-13.5 | 0.75 | - | - | - |
410S | 0.08 | 1.0 | 0.035 | 0.03 | 1.0 | 11.5-13.5 | 0.6 | - | - | - |
420J1 | 0.16-0.25 | 1.0 | 0.04 | 0.03 | 1.0 | 12.0-14.0 | - | - | - | - |
420J2 | 0.26-0.4 | 1.0 | 0.04 | 0.03 | 1.0 | 12.0-14.0 | - | - | - | - |
430 | 0.12 | 1.0 | 0.04 | 0.03 | 1.0 | 16.0-18.0 | 0.75 | - | - | - |
434 | 0.12 | 1.0 | 0.04 | 0.03 | 1.0 | 16.0-18.0 | - | 0.75-1.25 | - | - |
436L | 0.25 | 1.0 | 0.04 | 0.03 | 1.0 | 16.0-19.0 | - | 0.75-1.25 | - | Cb 53C min,0.80 max |
439 | 0.03 | 1.0 | 0.04 | 0.03 | 1.0 | 17.0-19.0 | 0.5 | - | 0.03 | Ti [0.20+4(C+N)] min, 1.10 max; Al 0.15 |
441 | 0.03 | 1.0 | 0.04 | 0.015 | 1.0 | 17.5-18.5 | 0.5 | - | 0.025 | Nb: 3C+0.3~1.0; Ti: 0.1~0.6 |
443 | 0.025 | 1.0 | 0.04 | 0.03 | 1.0 | 20.0-23.0 | 0.5 | - | 0.025 | (Ti+Cb)83(C+N) min, 0.80 max. Cu: 0.3-0.8 |
444 | 0.025 | 1.0 | 0.04 | 0.03 | 1.0 | 17.5-19.5 | 1 | 1.75-2.5 | | (Ti+Cb)[0.20+4(C+N)] min,0.80 max; Cu≤0.035 |
447 | 0.01 | 0.3 | 0.025 | 0.02 | 0.2 | 28.0-30.0 | 0.15 | 3.5-4.2 | 0.02 | (C+N) 0.025, Cu≤0.15 |
![]() |

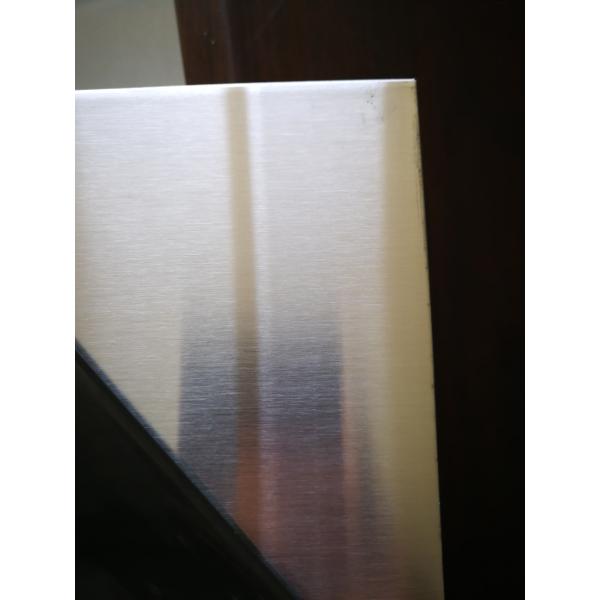

Ferrritic Alloy 443 Stainless Steel Sheet Cold Rolled SUS443 Sheet Aisi 443 Stainless Steel Sheet Images |
