Duplex / 2205 Stainless Steel Round Bar S31803 Duplex Rod
Duplex Steel
| Ferritic and Martensitic Stainless Steel Tubes: The most used Duplex Stainless Steel are the 2205 ( UNS S31803, 00Cr22Ni5Mo3N ) (22% Chromium, 5% Nickel) and 2507 ( UNS S32750, 00Cr25Ni7Mo4N ) (25% Chromium, 7% Nickel); the 2507 is also known as "SuperDuplex" due to its higher corrosion resistance. And UNS S32304(00Cr23Ni4N 2304) is also in Magvant's product programme.
Material StandardASTM A 789, ASTM A790
Manufacturing Process: Seamless or welded Stainless steel tube with material Austenitic-ferritic stainless steels or duplex steels have been in increasing use because their excellent mechanical qualities, good weldability and their high corrosion resistance. Their excellent resistance to corrosion enables them to withstand a chloride medium, particularly under mechanical stress. They are characterised by high chromium (19–28%) and molybdenum (up to 5%) and lower nickel contents than austenitic stainless steels. | UNSNo | C | Si | Mn | P | S | Ni | Cr | Mo | | S31803 | 0.03max | 1.00max | 2.00max | 0.030max | 0.020max | 4.50-6.50 | 21.0-23.0 | 2.50-3.50 | | S31500 | 0.03max | 1.40-2.00 | 1.20-2.00 | 0.030max | 0.030max | 4.25-5.25 | 18.0-19.0 | 2.50-3.00 | | S32550 | 0,04max | 1.00max | 1.50max | 0.040max | 0.030max | 4.50-6.50 | 24.0-27.0 | 2.90-3.90 | | S31200 | 0.030max | 1.00max | 2.00max | 0.045max | 0.030max | 5.50-6.50 | 24.0-26.0 | 1.20-2.00 | | S31260 | 0.030max | 0.75max | 1.00max | 0.030max | 0.030max | 5.50-7.50 | 24.0-26.0 | 2.50-3.50 | | S32304 | 0.030max | 1.00max | 2.50max | 0.040max | 0.040max | 3.0-5.5 | 21.5-24.5 | 0.05-0.60 | | S32750 | 0.030max | 0.80max | 1.20max | 0.035max | 0.020max | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 | | S32760 | 0.05max | 1.00max | 1.00max | 0.030max | 0.010max | 6.00-8.00 | 24.0-26.0 | 3.00-4.00 | Comparison of material of main Duplex Stainless Steel Tube in Different Countries | USA | China | France | Germany | Japan | Sweden | UK | | S31803 | 00Cr22Ni5Mo3N | UR45N, UR45N+ | W-Nr.1.4462 | DP8 | 2205 (SS2377) | | | S31500 | 00Cr18Ni5Mo3Si2 | | W-Nr.1.4417 | DP1 | 3RE60 (SS.2376) | | | S32550 | 00Cr25Ni6Mo3CuN | UR52N+ | W-Nr.1.4507 | | | Ferralium255 | | S31200 | 00Cr25Ni6Mo2N | | | | | | | 00Cr22Ni5Mo3N | UR 47N | | | | | | S31260 | 00Cr22Ni5Mo3WcuN | | W-Nr.1.4501 | DP3(SUS329J2L) | | Zeron100 | | S32304 | | UR35N | W-Nr.1.4362 | DP11 | 2304 (SS.2327) | | | S32750 | | UR47N+ | W-Nr.1.4410 | | 2507 | | | S32900 | 00Cr26Ni5Mo2 | | W-Nr.1.4460 | DP6 (SUS329J1) | 10RE51 (SS2324) | | | S32950 | | | | | | | |
Specifications:
Round bar steel: 1mm to 2000mm
Square bar steel: 50mm to 600mm
Plate/flat steel thickness:0.1mm to 800mm
Width: 10mm to 1500mm
Lenth: We can supply any length based on the customer's requirement.
Forging: Shafts with flanks/pipes/tubes/slugs/bar/donuts/ring/cubes/other shapes
Tubings: OD: φ6-219 mm, with wall thickness ranging from 1-35 mm.
Finished goods condition: hot forged/hot rolled + annealing/normalizing + tempering/quenching +tempering/any conditions based on the customer's requirement
Surface conditions: scaled (hot working finish)/ground/rough machining/fine machining/based on the customer's requirement
Furnaces for metallurgical processing: electrode arc + LF/VD/VOD/ESR/Vacuum consumable electrode.
Ultrasonic inspection: 100% ultrasonic inspection for any inperfections or based on the customer's requirement
Product Tags:
|
|

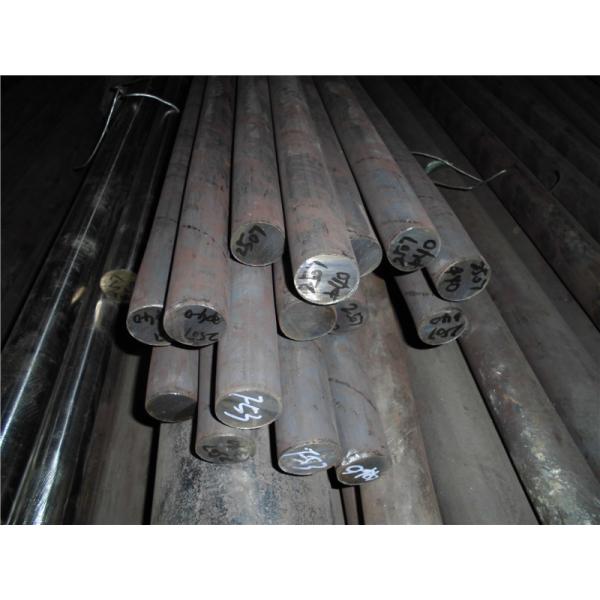

Stainless Steel 2205 Duplex Bar Round Rod Alloy 2205 F51 Steel Round Bar S31803 Duplex Bar Images
|
